More tertiary combustion air is mixed to improve combustion efficiency and wind pressure capability to promise efficient combustion even though the flue is long.
The finest stainless material with no stress, corrosion, and crack and available under 3.5kgf/cm² of high hydraulic pressure
A special Hi Fin fire tube to promote heat transfer

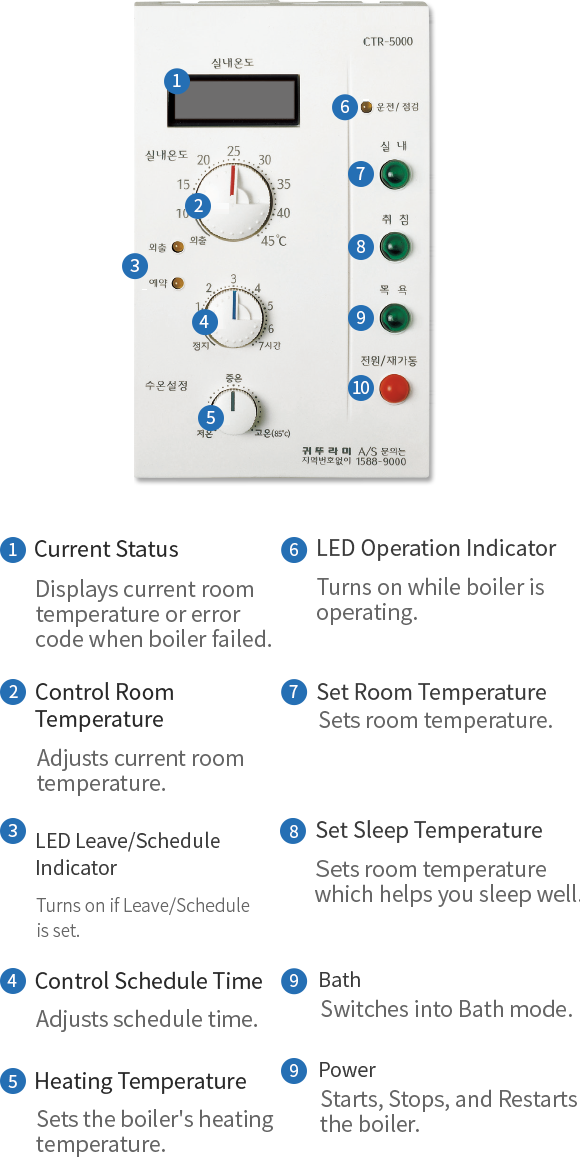

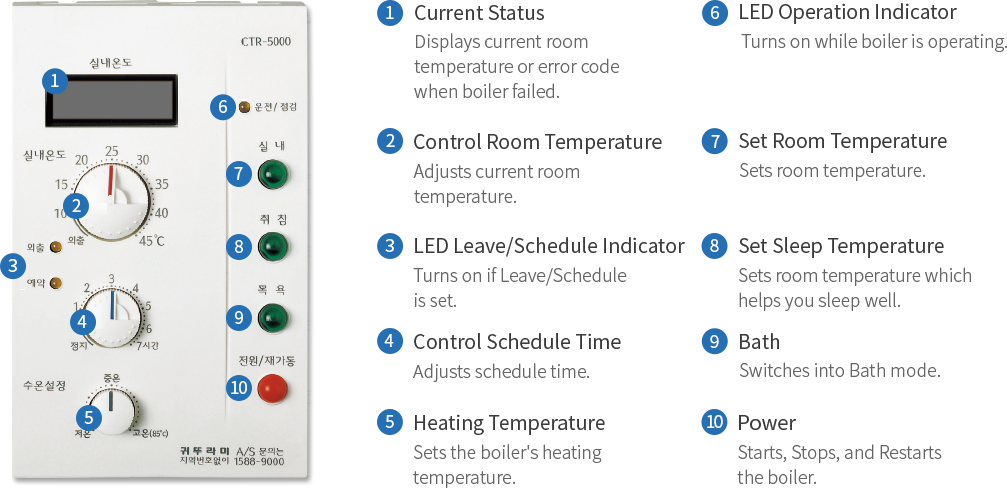

You can use various functions including leave, bath, schedule, etc. through very intuitive room controller.
Type | Unit | Heating & DHW Combi | |||||||
---|---|---|---|---|---|---|---|---|---|
Item | 13S/D | 17S/D | 21S/D | 25S/D | 35S/D | ||||
Rated output | Heating | kW(kcal/h) | 16.9(14,500) | 19.8 (17,000) | 24.4(21,000) | 29.1 (25,000) | 40.7 (35,000) | ||
DHW | kW(kcal/h) | 16.9 (14,500) | 19.8 (17,000) | 24.4(21,000) | 29.1 (25,000) | 40.7 (35,000) | |||
Fuel consumption | ℓ/h | 1.98 | 2.18 | 2.75 | 3.30 | 4.60 | |||
Type | Type | Floor standing, Semi-Closed, FE | |||||||
Fuel type | - | light oil, kerosene | |||||||
Heating surface area | ㎡ | 0.61 | 0.61 | 0.68 | 0.85 | 1.56 | |||
Operating flow rate | ℓ | 12 | 12 | 11 | 14 | 22 | |||
Efficiency | Heating | % | 83(89) | 83(89) | 83(89) | 83(89) | 83(89) | ||
DHW | % | 83(89) | 83(89) | 83(89) | 83(89) | 83(89) | |||
Hot water heating system | - | Indirect Heating Structure | |||||||
DHW output | △T=25℃ | ℓ/min | 9.7 | 11 .3 | 14.0 | 16.7 | 23.3 | ||
△T=40℃ | ℓ/min | 6.1 | 7.1 | 8.7 | 10.4 | 14.6 | |||
Max. Operating pressure | kgf/㎠ | 3.5/1.0 | |||||||
Connections | Central heating outlet, return | A | 25 | ||||||
Cold water inlet , DHW outlet | A | 15 | |||||||
Flue connections | Ø | 75 | |||||||
Outer case dimension | W X H X D | 285×565×721 | 325×602×700 | 365×650×915 | |||||
Weight | kg | 26/27 | 26/27 | 28/29 | 32/33 | 46 | |||
Electric Supply | AC 220V / 60Hz |
Type | Unit | DHW only | |||||
---|---|---|---|---|---|---|---|
Item | 25G | 35G | |||||
Rated output | Heating | kW | 29.1 | 40.7(35,000) | |||
DHW | kcal/h | 25,000 | 40.7 (35,000) | ||||
Fuel consumption | ₩ | 3.30 | 4.60 | ||||
Type | - | Floor standing, Semi-Closed, FE | |||||
Fuel type | - | light oil, kerosene | |||||
Heating surface area | ㎡ | 0.85 | 1.56 | ||||
Operating flow rate | - | 16 | 25 | ||||
DHW efficiency | % | 83(89) | 83(89) | ||||
Hot water heating system | - | Indirect Heating Structure | |||||
DHW output | △T=25℃ | ℓ/min | 16.7 | 23.3 | |||
△T=40℃ | ℓ/min | 10.4 | 14.6 | ||||
Max. Operating pressure | kPa(kgf/㎠) | 3.5 | |||||
Connections | Hot water inlet , DHW outlet | A | 25 | ||||
Flue connections | Φ | 75 | |||||
Outer case dimension | W X H X D | 325×602×700 | 365×650×915 | ||||
Weight | kg | 31 | 45 | ||||
Electric Supply | AC 220V / 60Hz |
